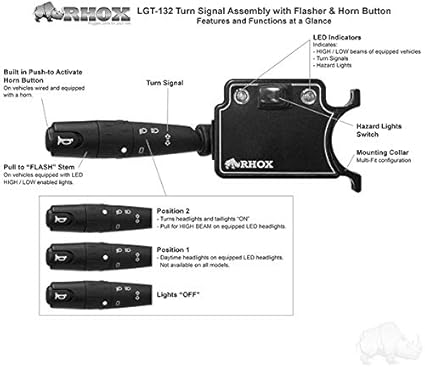

Amazon Com Rhox Deluxe Golf Cart Turn Signal W Flasher

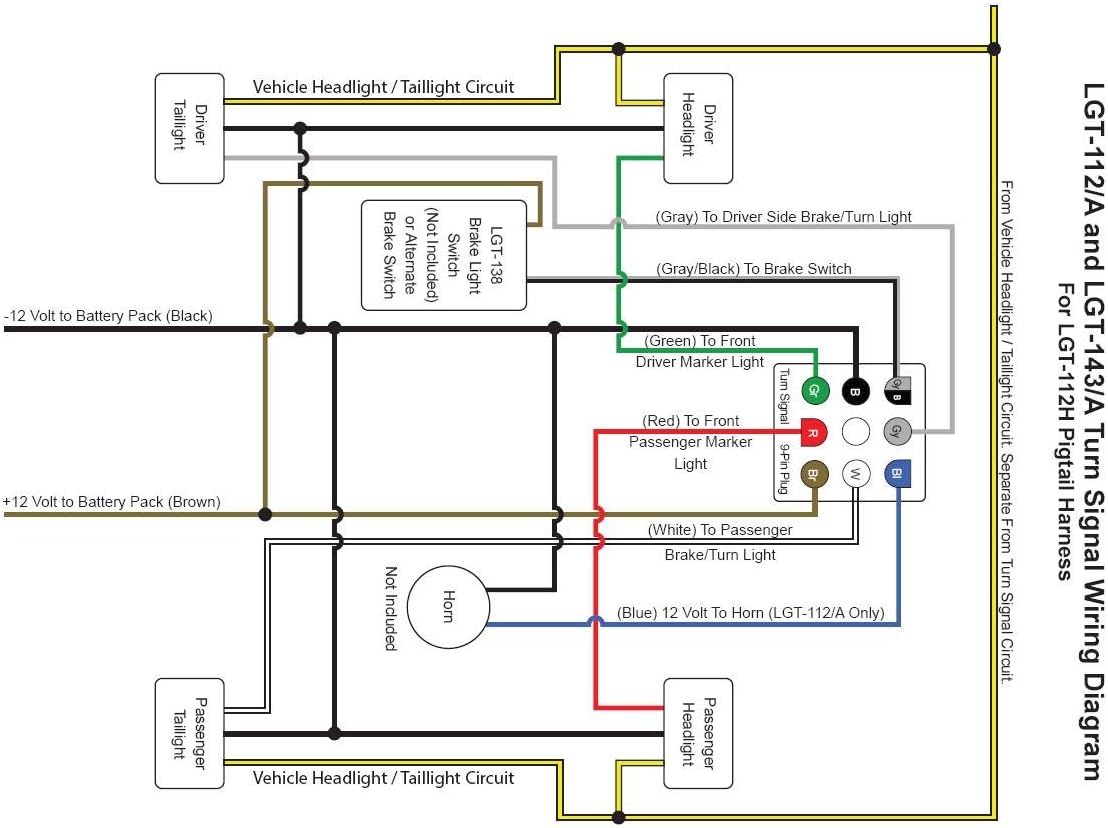

Rhox turn signal wiring diagram. Lgt 132b pigtail harness wiring diagram from pigtail 9 pin plug yellow to front driver side marker light blacksilver 12v to battery pack redsilver to brake light switch orange to braketurn signal lead from driver taillight bluered to headlights and running light leads from taillights greensilver to front passenger side marker. Email a friend add to favorites item. Lgt 112a and lgt 143a turn signal wiring diagram for lgt 112h pigtail harness b w turn signal 9 pin plug driver headlight passenger headlight driver taillight passenger taillight horn not included lgt 138 brake light switch not included or alternate brake switch gr r gy b gy bl br from vehicle headlight taillight circuit. It shows the parts of the circuit as simplified forms and also the power and also signal links in between the devices. 16400 turn signal assembly w flasher horn button harness. It doesnt make any difference as the tail light wiring isnt affected.
Plug play only for rhox wiring harness pigtail included with wiring diagram for non rhox harness click here to see instructions lgt 143 lgt t1 rhox basic turn signal on a club car ds from rhox garage on vimeo. Red hawk sells exclusively to golf cart dealers and distributors. Lgt 107a column cover caution. Universal bolt on turn signal switch wiring duration. Some have the tail light wire running through them 4 wire into 3 wire and some dont 3 wire into 2 wire. Rhox 6 manufacturer e z go 3 yamaha 2.
Turn signal kit kit includes. You can get them at places like napa or here. Shown on club car ds with rhox plug play harness. A wiring diagram is a streamlined standard pictorial depiction of an electric circuit. Installation instructions for the rhox standard turn signal switch lgt 112 lgt t2 on a club car ds. Variety of universal turn signal wiring diagram.
They look like this. Rhox universal golf cart turn signal switch turn signal flasher and horn button plug play only for rhox wiring harness pigtail included for non rhox wire harness with wiring diagram pictured fits club car ezgo yamaha and other golf carts frequently bought together. American autowire 154347. Before starting this project remove the system positive and negative connections from the battery or battery pack and place the towrun switch in the tow position on electric vehicles. They will combine the brake wiring and the turn signal wiring so they will work. 10200 turn signal kit e z go rxv 08 15.
Turn signal switch with horn button 7 wire 12 48v. Lgt 143 turn signal b. Turn signal switch with horn button 7 wire 12 48v. Please read through the instructions carefully.
