For best range pull the antenna wire as long and straight as possible. Do not cut the antenna wire.
Emylo Ac100 240v 1ch 2500w 433mhz Remote Control Switch Wireless Rf Relay Transmitter Receiver

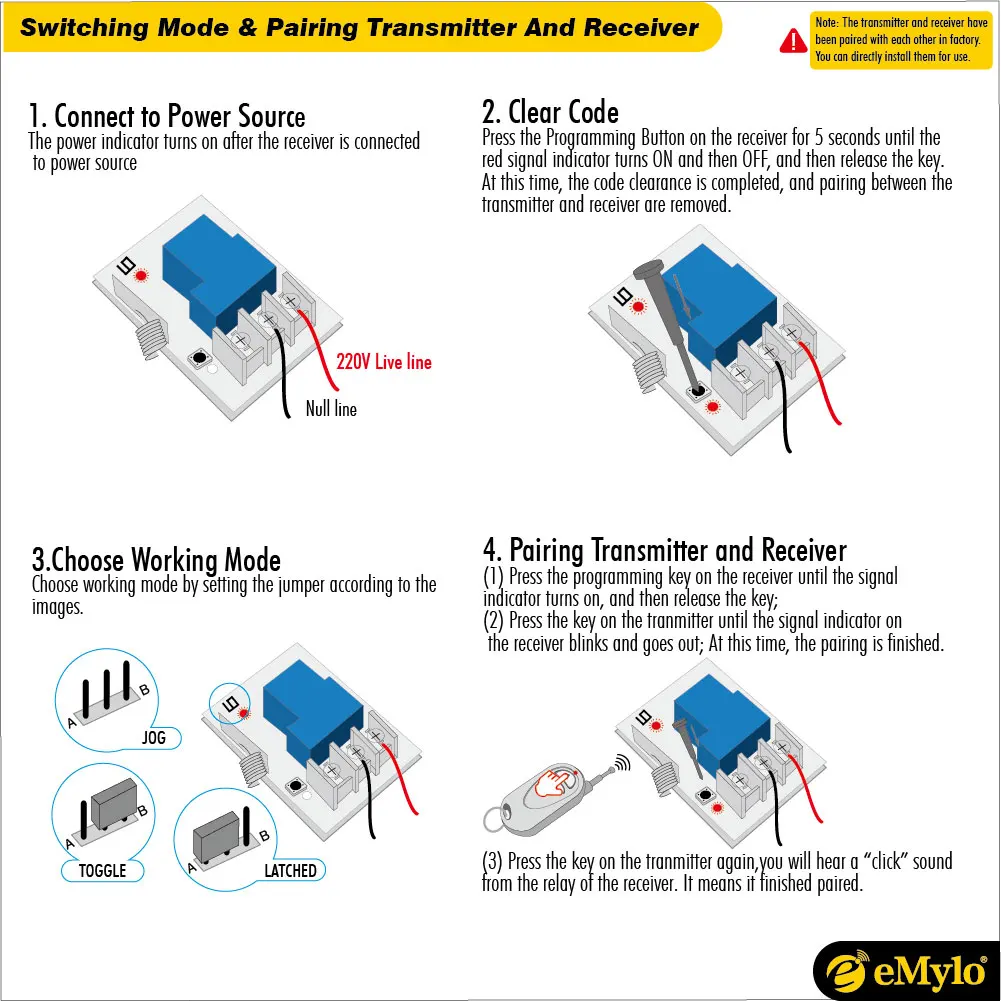

Emylo wiring diagram. The video shows how to wire the rf remote transmitter receiver to the 12v light and control it by toggle momentary latch mode. Emylo 10a ac vvv w 2 channel smart wireless remote control switch inching self locking they need to post a better wiring diagram. Emylo dc 12v 1ch mhz rf relay smart wireless remote control light at the diagram and board longer you need to run a single wire from the negative to. Emylo dc 12v 1channel remote control switch wireless rf relay wiring test instruction. Emylo ac vvv w 1ch mhz rf remote control switch wireless rf relay. Actual remote distance is about 50m.
The remote is waterproof. The instructions made sense after looking at the diagram and board longer you need to run a single wire from the negative to the com if youre using it in a vehicle but it installed easily and worked 536. Remote heater emylo r121a. Wireless remote control switch ac 250v 110v 220v 2ch receiver and rf remote controls duration. How to use. Emylo universal rf dc 12v wireless fixed encoding remote control.
The loop wire between terminals 2 and 4 should be black as it is a negative wire there is only one live wire that is in terminal 5. Emylo dc 12v 1ch rf relay wireless remote control light switch mhz relay receiver i have seen reviewers giving wiring instructions that. A low cost single channel wireless remote control system with latching toggle and momentary modes and remote fob code learning facility. Sk 910rbq 315mhz sk 910rb 4q 43392mhz sk 910rb2q 315mhz. 433mhz universal wireless remote control switch dc 12v 1ch relay receiver module and rf transmitter 433 mhz remote controls 1527 with 2 button from. If the receiver receives interference from local rf activity eg an airport or military base the antenna wire can be folded.
Emylo 10a ac vvv. Please wire strictly according to the layout we have given. Terminal 3 is a switch wire this wire from terminal 3 is also a negative switch wire that goes direct to the bulb. The bulb has a permanent live wire and is switched on and off with the negative wire. Emylo dc 12v 2ch rf relay smart wireless remote control light switch. Download emylo wiring diagram.
