Golf Cart Battery Meters Installation Guide By Pete

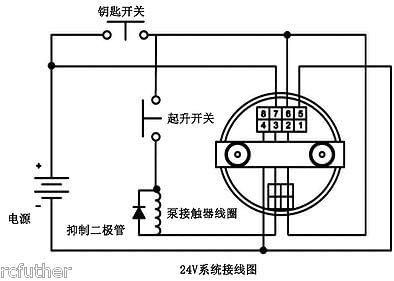

Curtis battery meter wiring diagram. Leaving pin 1 open or connecting it to high voltage gives control of the hour meter to the hour meter input2 3 0 pin 3 connects in series with the lift coil circuit or the circuit to be switched at empty. Golf cart batteries are wired in series with the positive terminal of each battery linked to the negative terminal of the next one. A wiring diagram is a streamlined standard pictorial representation of an electric circuit. Locate the battery tray and examine the batteries. Advanced technology for evs. Curtis instruments wiring diagrams together with 1126890 65 ford f100 wiring diagrams further 79gwx need find info electrical schematic john deere 345.
Next step will be to connect the wire to the signal terminal on the meter to the ignition. This way the meter only comes on when you turn the golf carts ignition on. Pins 1 2 are connected across the total battery pack. Battery monitoring system 31 pages. Curtis model 803 combines in one instrument a completely solid state battery discharge indicator an lcd hour meter and lift lockout housed in a 52mm case. Pin 2 battery connects to the vehicles main negative terminal use as short a wire as practical.
Use as short a wire as practical. For holding relay j pin 3 must be electrically closer to battery than pin 42 4 0. Sequential logo code 00 2 wire hour meter see section 22 r electrical reset o curtis 01 3 wire hour meter for specifications n no reset n no logo 03 pulse counter xxyy nominal voltage see section 21 for. Installing a battery monitoring voltage meter is a useful project requiring only basic wiring skills and the ability to use simple tools. Curtis battery meter wiring diagram 21032011 does any body have a wiring diagram for the battery meter mine is a curtis brand and i think mine is hocked up wrong what its doing is after i get. Void of moving parts this combination instrument is exceptionally reliable even in severe operating environments.
Table 1 to activate the hour meter. Pin 1 battery connects to the vehicles main positive terminal. It reveals the elements of the circuit as simplified shapes and also the power and signal connections between the devices. Instrumentation motor speed controllers inverters integrated systems drive systems and engineering support for electric vehicle designers. Assortment of golf cart battery meter wiring diagram.
