It has a relay for the start capacitors to cycle out and a thermal switch. In all cases if youre unsure about how the motor should be connected consult an expert as incorrectly wiring a motor can lead to a shocking hazard or injury.
Electric Motor Capacitor Wiring Faqs

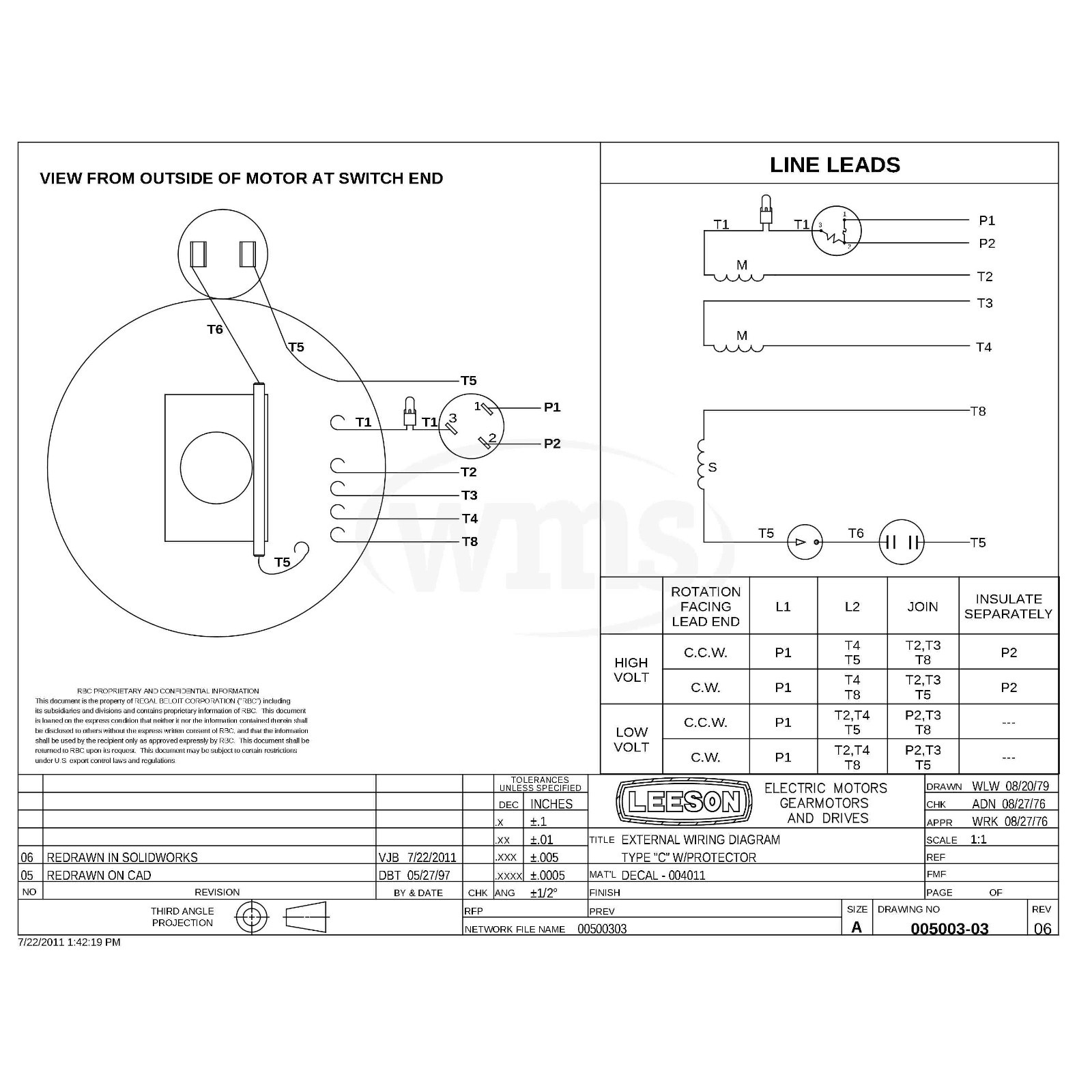

Ajax electric motor wiring diagram. When wired for 115 volts each capacitor and its winding are in series and parallel to the other start winding. This motor is unusual in that when wired for 230 volt operation the capacitors are in series with the start windings. For specific leeson motor connections go to their website and input the leeson catalog in the review box you will find connection data dimensions name plate data etc. Furthermore wiring diagram provides you with enough time body during which the projects are to become finished. If the wiring schematic. Photo 4 shows the two 115 volt capacitors.
Even with new bearings it runs a bit noisily. In this lesson well learn to read and interpret motor connection diagrams and determine the electrical relationship of the stator windings using motor connection diagrams. You may be capable to know specifically if the projects ought to be finished that makes it much simpler for you to. Inst maint wiringqxd 5032008 1002 am page 6. To cut to the chase i have a problem rewiring the capacitors. Wiring an ac electric motor is not particularly difficult if the manufacturers manual is available.
What connects to what. These diagrams are current at the time of publication check the wiring diagram supplied with the motor. Preheating benefit as work is introduced salt freezes on the surface preheating the work evenly until the melt point of the salt is reached reducing thermal shock. Electric motor wire marking connections. Ajax 5 hp 1 ph 1725 motor capacitor set up 07012010 1137 am as i stated previously caps in series reduce total capacitance but increase the voltage capability of the capsevidently they seriesed these caps to increase voltage tolerance which shows a willingness of the manufacturer to go the extra mile for durabilitymost would have. With an ajax salt bath your work is in contact at all points with the heating medium.
But if the manual cannot be found the job becomes tougher. Always use wiring diagram supplied on motor nameplate. Wiring diagram single phase electric motor wiring diagram explained motor run capacitor wiring diagram. Refer to the motor manufacturers data on the motor for wiring diagrams on standard frame ex e ex d etc. Has anyone got access to an actual picture of a setup like this. It has 5 wires t1t4 t5 t17 t18.
I have and old ajax motor used to run an old planer.
