Nowadays tda2030 is a common ic. It provides 14w output power d 05 at 14v4ω at 14v or 28v the guaranteed output power is 12w on a 4ω load or 8w on a 8ω.
Tda2030 Audio Amplifier Circuits

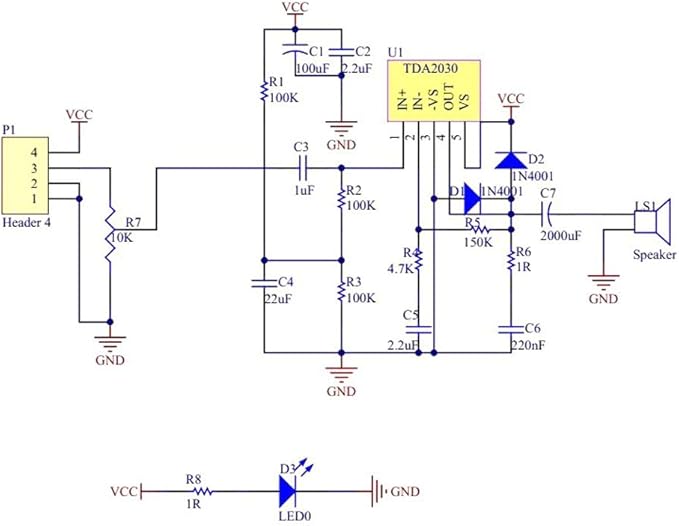

Tda2030 wiring diagram. An audio amplifier is nothing but one that has the capability to amplify the audio signals from any audio source such as mobile phone jack or microphone so that volume is increased when the audio is played in a speaker. It is suitable for a small room as the output power of 14 watts 14 watts at 4 ohms speaker. Also you can build it easily with the pcb layout. In the above tda2030 circuit diagram the connection of r1 and c2 can be done in series. We can alter the circuit diagram then we will get up to 50 watts output. The tda2030 is a powerful audio amplifier ic.
Through pin 2 of the ic to hold back the noises within the audio signal and pin 3 is grounded. We have connected a 22uf capacitor in series to the non inverting pin of the tda2030 here it is acting as the high pass filter. Tda2030 is a monolithic integrated circuit in pentawatt package intended for use as a low frequency class ab amplifier. Left and right channels. This circuit is constructed by using tda2030 ic and this is intended for use as a low frequency class ab amplifier. Tda2030 10w audio amplifier circuit.
To boost up the power of the amplifier we need to introduce two transistors in the circuit. It can run 9 volts to 28 volts. Above is the circuit diagram for this tda2030 based amplifier circuit. The input sensivity is around 200mv and the amplifier is set by the 47k and 15k resistors. But normally we use 12 volts for good performance. The figure is a schematic diagram of the board wiring carefully control wiring.
This is a low noise and low frequency ic. Its a mono based ic. Low price and very easy to make the diagram to make it. We also can use this circuit with the 12 volt battery. There is a resistor r4 between pin 2 and 4 we called that resistor as feedback resistor. A single tda2030 ic can deliver up to 15 watts output.
This is an ocl stereo amplifier using tda2030. So that it allows only the high frequency audio signal. 18wx2 recommended to use 25 4 inch full range speakers 4 8 10 30w europe. 80 computer subwoofer used this ic. By circuit diagram tda 2030 audio amplifier can output 20 w but in this schematic we have reduced the power to 8w and we use 10w speakers. Amplifier circuit using tda2030 and tda2050.
And using a few components with 15 dual power supply for tda2030. Not enough bass sound on your subwoofer then try this simple diy circuit to improve your woofer speaker performance. Audio amplifier circuits can also be made using simple op amps but if you need. The op of the ic is connected through the 2200uf value of the series capacitor which allows amplified signal toward the speaker.
