Connect the gray wire from the 12 pin plug to the positive speakerwire of the metra sp 2003 or equivalent. Metras gmos lan 01 wiring interface lets you replace the factory radio in select onstar equipped 2006 up gm vehicles using the existing wiring and connectors.
2008 Gmc Yukon Double Din Install And Sound System Escalade
Gmos lan 012 wiring diagram. After a few seconds the led. Gm onstar lan data bus interface the gmos lan is designed to retain onstar and retain the warning. Gmos lan 012 gm lan 29 data interface 2006 up. The gmos lan 012 also provides a mute parking brake vss vehicle speed sensor and a reverse output to make installing an aftermarket navigation. Even if you dont subscribe to onstar youll need this interface to connect an aftermarket stereo. Connect the gmos lan 012 harness to the wiring harness in the vehicle.
Luis porras 29463 views. Can be used in non amplified or analogdigital amplified models. Will turn on solid red while the interface automatically programs to the vehicle. This process should take 5 to 30. Will initially be green to indicate the interface is powered. Metra recommends disconnecting the negative battery terminal before beginning any.

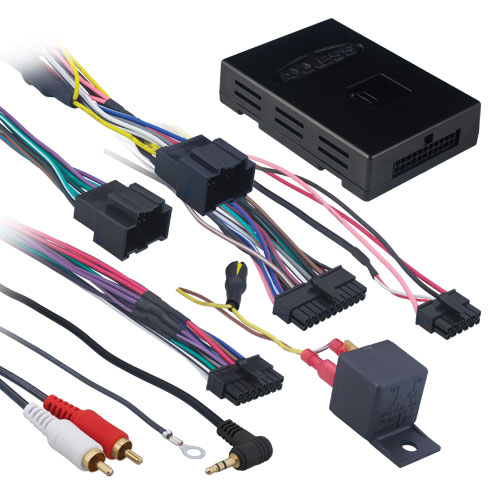

Axxess gmos lan gm factory integration interface onstar chime adbox aftermarket stereo installation harness for up gm lan29 vehicles. Tech docs instructions. Cut the gray wire about half way between the two plugs. Aftermarket wiring harness axxess xsvi 9003 nav interface duration. Page 8 gmos lan 012 i n s ta l l at i o n i n s t r u c t i o n s important if you are having difficulties with the installation of this product please call our tech support line at 1 800. 2006 yukon denali aftermarket stereo install gmos 04 duration.
Cycle thekeybyturningtheignition onfor30secondsthenoffand again to test the radio. The radio will shut off at this point. Refer to programming the gmos lan 012 from this point. Provides accessory power 12 volt 10 amp maintains the retained accessory power rap feature. The gmos lan 012 is designed to retain onstar oem satellite radio and the warning chimes that are normally lost when a factory gmlan29 radio is removed and provide a 12 volt accessory output for aftermarket radio operation. Plug the 16 pin and 14 pin gm harnesses into the vehicle side harness and plug the aftermarket radio harness into the aftermarket radio.
Connect thegray wire from the 24 pin plug to ampli fiers right front positive speaker output wire. Gmos lan 012 wiring diagram installation instructions for part gmos lan caution. Become a dealer to order. Press and hold the reset button for 2 seconds then let go to reset the axxess interface. Reconnect the negative battery terminal. Gmos lan 012 wiring diagram axxess gmos lan gm factory integration interface onstar chime adbox aftermarket stereo installation harness for up gm lan29 vehicles.
