When power is applied to wire 4 the actuator rotates counter clockwise. Properly terminate the conduit in a suitable junction box.
2018 Product Guide And Price List Americas Usd Pdf Free

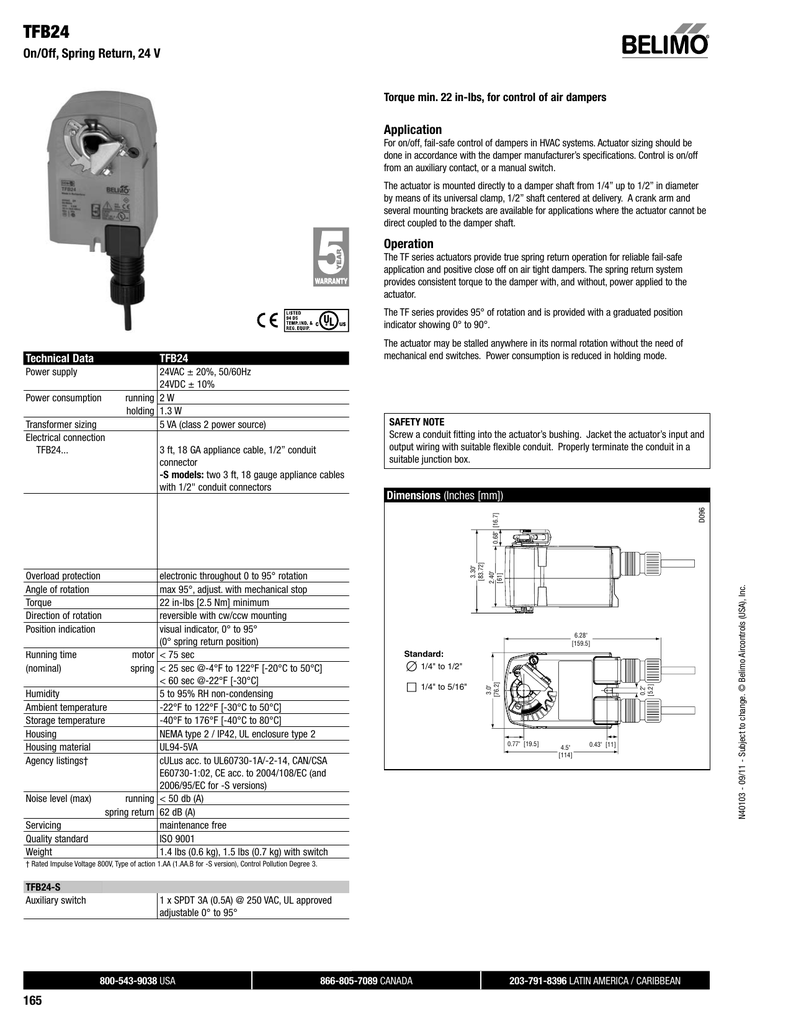

Belimo tfb24 s wiring diagram. Technical data 97402 power supply 24 vac 20 5060 hz 24 vdc 10 power consumption in operation 2 w power consumption in rest position 1 w transformer sizing 4 va class 2 power source. Actuators input and output wiring with suitable flexible conduit. This website uses cookies. Tfb24 technical data sheet onoff spring return acdc 24 v 800 543 9038 usa 866 805 7089 canada 203 791 8396 latin america caribbean. This website uses cookies. Share on twitter facebook whatsapp pinterest.
During installation testing servicing and troubleshooting of this. Actuators shall be as manufactured by belimo. Belimo tfb24 s wiring diagram belimo xref and tech guide kele. Damper actuator 22 in lb 25 nm spring return acdc 24 v onoff. By using and further navigating this website you accept this. Dimensions inchesmm 077 196 039 99 45 114 02 51 628 1595 30 762 33 838 240 61 068 173 33 838 tfb24 s technical data sheet onoff spring return acdc 24 v auxiliary.

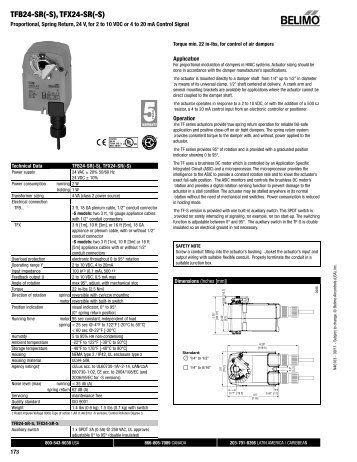

Tfb24 sr damper actuator modulating spring return 24 vacdc for 2 to 10 vdc or 4 to 20 ma control signal. Detailed information about the use of cookies on this website is available by clicking here. Actuators input and output wiring with suitable flexible conduit. The tf24 3 s us and tf24 sr s us actuators rotate clockwise when the switch is in the cw position and power is applied to wire 3. Belimo tfb24 s wiring diagram 2018 product guide and price list americas usd pdf free. Wiring diagram 209 views.
Detailed information about the use of cookies on this website is available by clicking here. By using and further navigating this website you accept this. During installation testing servicing and troubleshooting of this. Understanding wiring diagrams analog outputs wiring diagrams for belimo products applications specifications 24 vac transformer line volts 1 com mon 2 hot af24 us nf24 us lf24 us 24 vac transformer 2 to 10 vdc feedback signal line volts blk 1 common red 2 hot wht 3 y 1 input 2 to 10 v 4 y 2 grn 5 output 2 to 10v control. Rotating the direction of rotation switch to ccw reverses the control logic. Related posts of belimo tfb24 s wiring diagram xr650r wiring diagram.
